Lloyd C.II

The Lloyd C.II was based on the pre-war C.I airplane with a slightly shorter wingspan and the addition of a machine gun on a circular mount for the observer. The C.II featured a plywood body and swept-back, tapered wings and was used for reconnaissance and light bombing throughout the war.

Two other versions were built in small numbers, the C.III and the C.IV had bigger engines and slight modifications to the wings.

Early in the war, planes of Austria-Hungary carried red and white stipes on their wing tips. The German cross was adopted for Austro-Hungarian planes in 1916; some planes carried both markings.

Country of Manufacture Austria-Hungary
First Year of Service 1915
Wing Span 46.9 ft | 14 m
Length 26.5 ft | 9 m
Height 11.1 ft | 3.4 m
Weight 2970 lbs | 1350 kg
Engine Hiero, 6 cylinder inline, liquid cooled engine, 145hp
Top Speed 80 mph | 128 km/h
Range 250 miles | 400 km
Armament 1 Schwarzlose 8mm machine gun
Crew 2


Technical Notes:

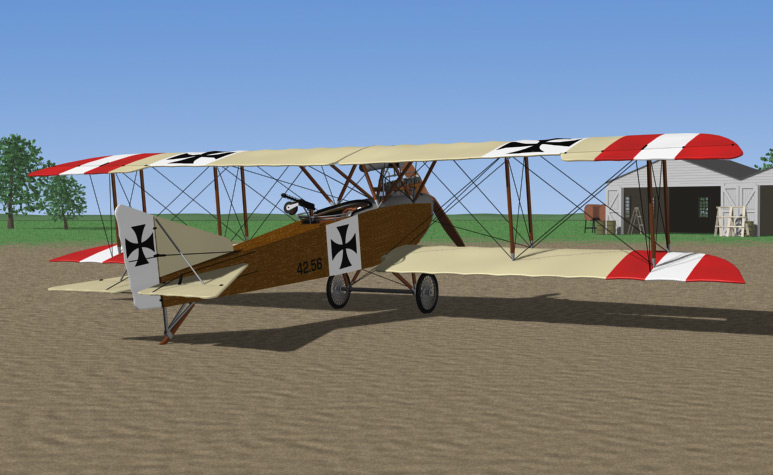

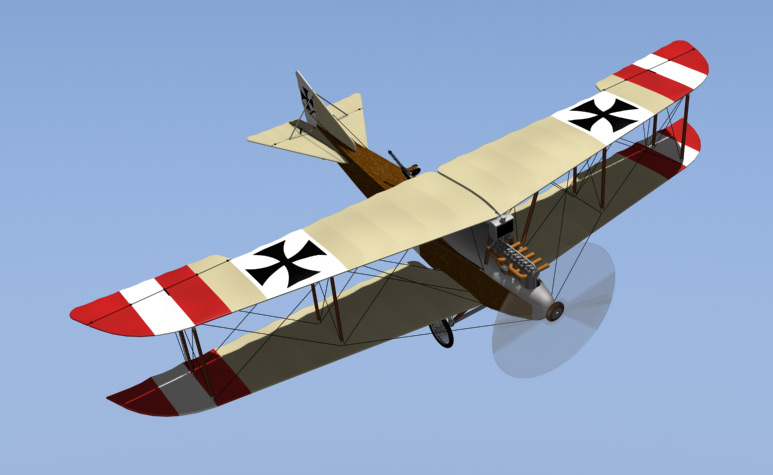

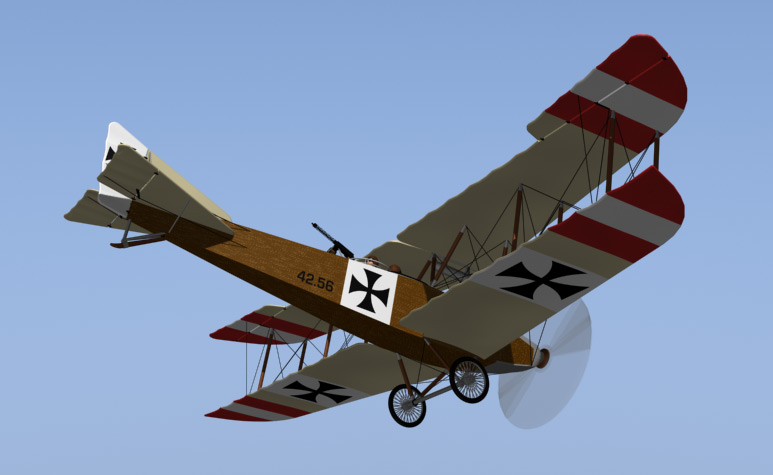

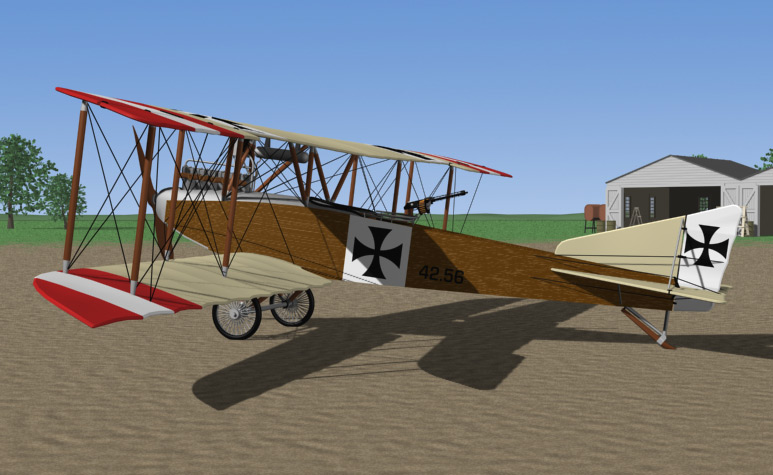

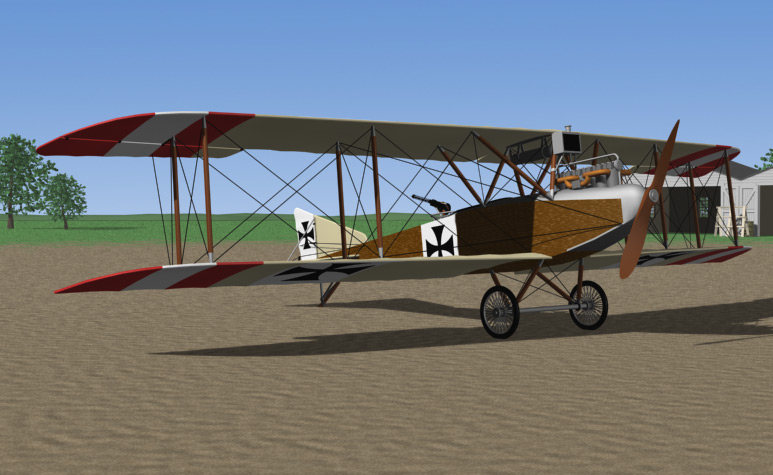

Made with Autodesk 3D Studio Max - Airplane not including background, 38880 vertices, 48630 faces - All aircraft insignia are modeled as part of the mesh.
Historical Notes:
The instruments in the cockpit are conjecture.
